Charged up 3D

75100 pro v2 VESC (Pre tuned)

75100 pro v2 VESC (Pre tuned)

Regular price $220.00 USD
Regular price Sale price $220.00 USD
Sale Sold out
Shipping calculated at checkout.
Motor tune

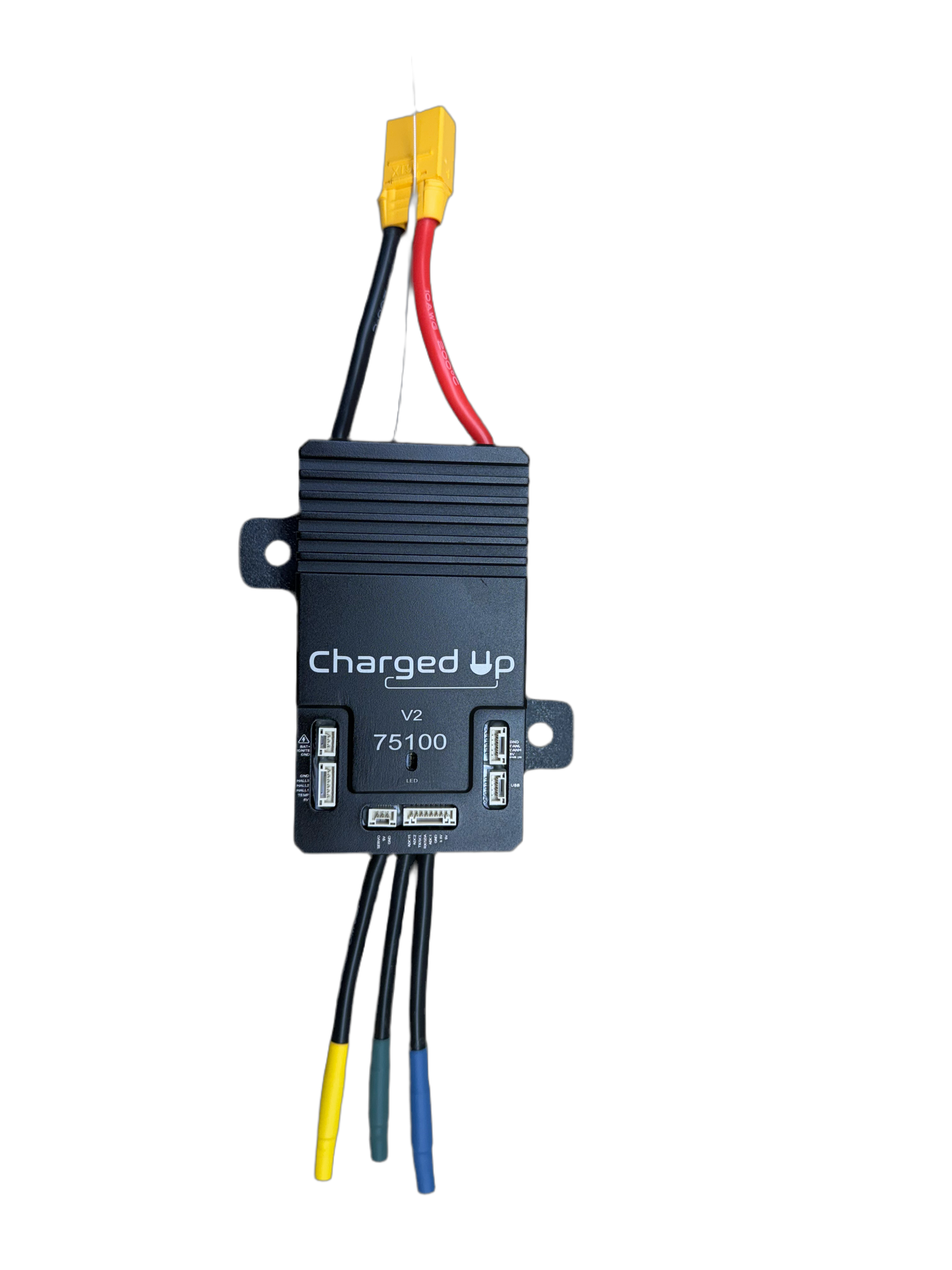

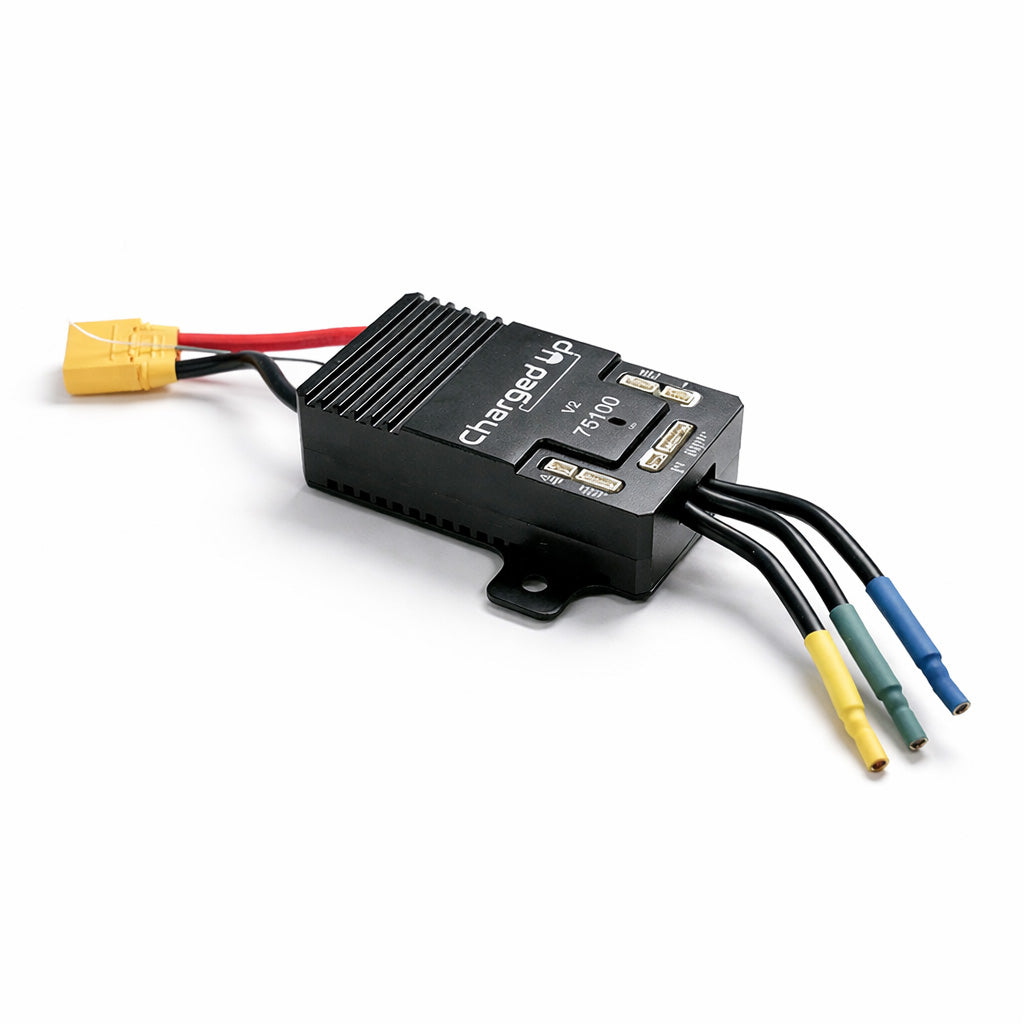

Flipsky 75100 pro v2 vesc pre wired and tuned

Specs:

  • 75100 Pro Size: L103mm*W58mm*H27.7mm
  • Voltage:14-84V (4-20S)
  • Current:100A Continuous,burst 120A
  • BEC:5V@1.5A
  • Support BLDC square wave mode control and FOC sine wave mode
  • Firmware: 6.0 via custom firmware from Benjamin Vedder
  • ERPM:150000
  • Control Interface Ports:USB,CAN,UART
  • Supported Sensors:ABI,HALL,AS5047,AS5048A
  • Input Set Support:PPM,ADC,NRF,UART
  • Wire Size: 10AWG(75100 Pro)
  • Programmable: Yes
  • Regenerative Capacity: Yes

Newly upgraded:

  1. Change connection wires from 12Awg to 10Awag.
  2. More sensitive temperature detection function
  3. Integrated bluetooth module design
  4. Size & design upgraded
  5. 16mm power switch with light!

Warning :

WARRANTY VOID IF YOU WIRE ON NEW CONNECTORS!!



Materials

TPU
