3.5" Advanced Display

Everything you loved about our 2.8" display, upgraded to a bigger screen with multi-protocol support. A full-color 3.5" IPS capacitive touchscreen that gives you real-time telemetry across VESC, Fardriver, and ANT BMS controllers -- no app required.

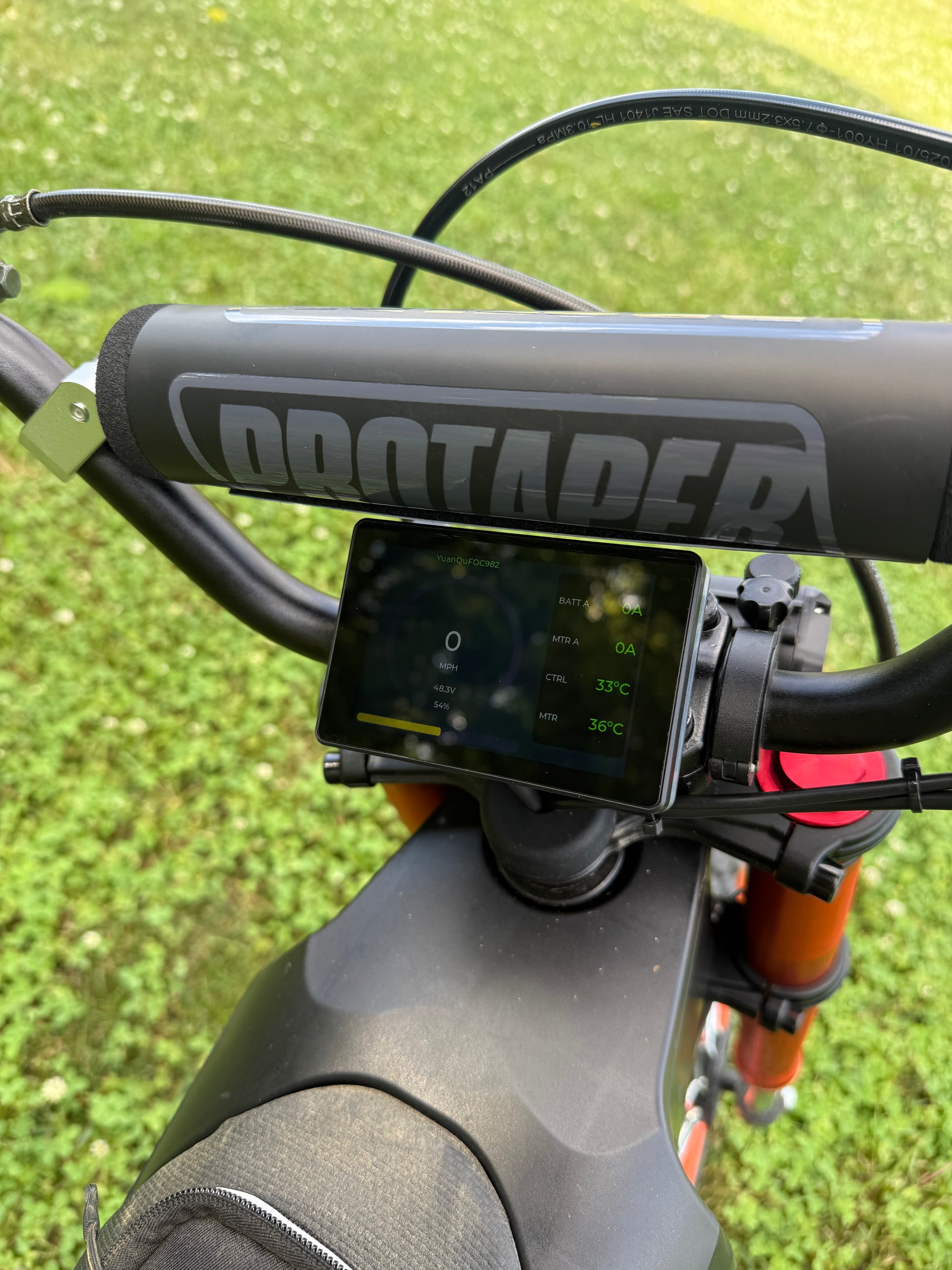

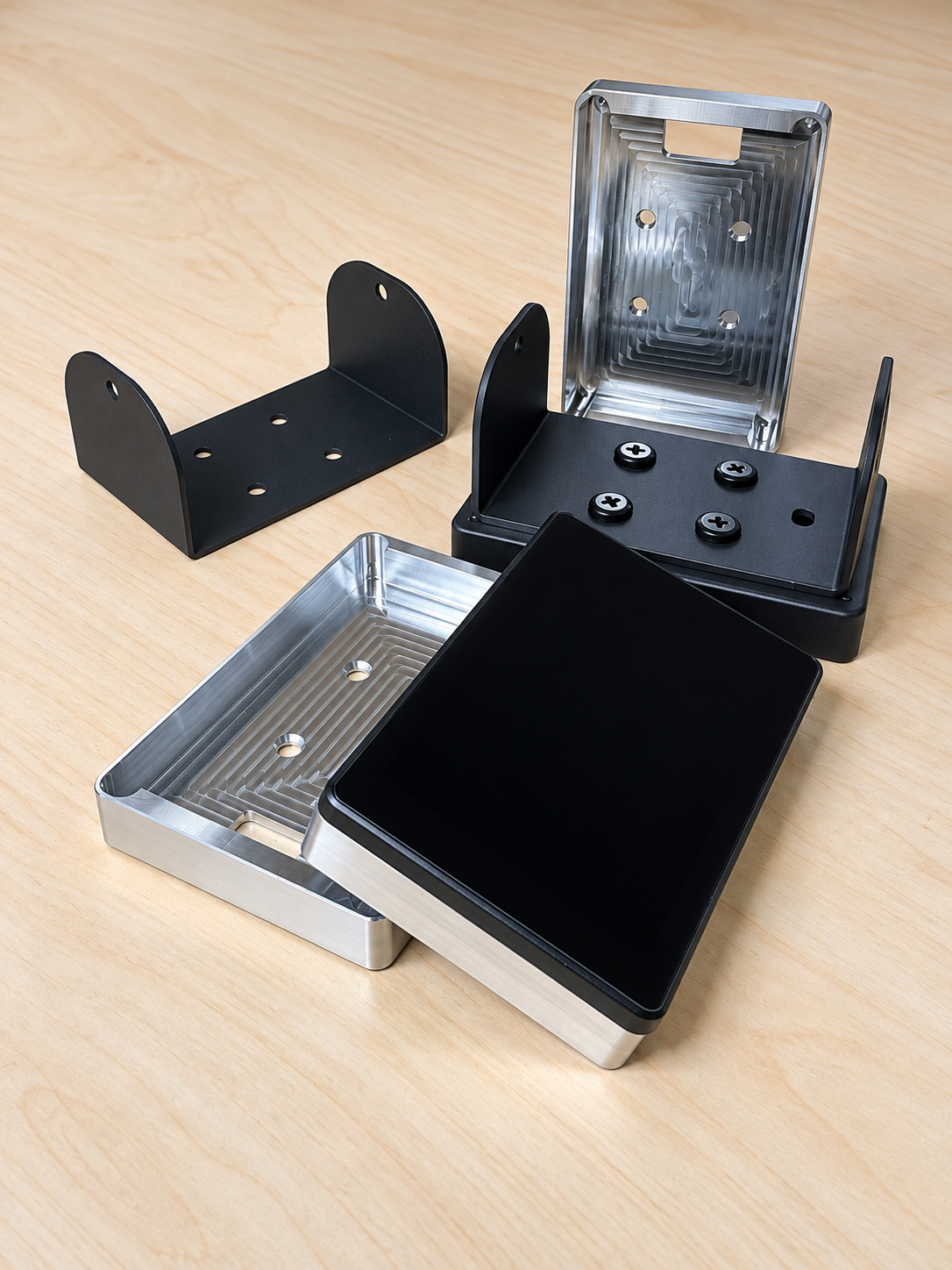

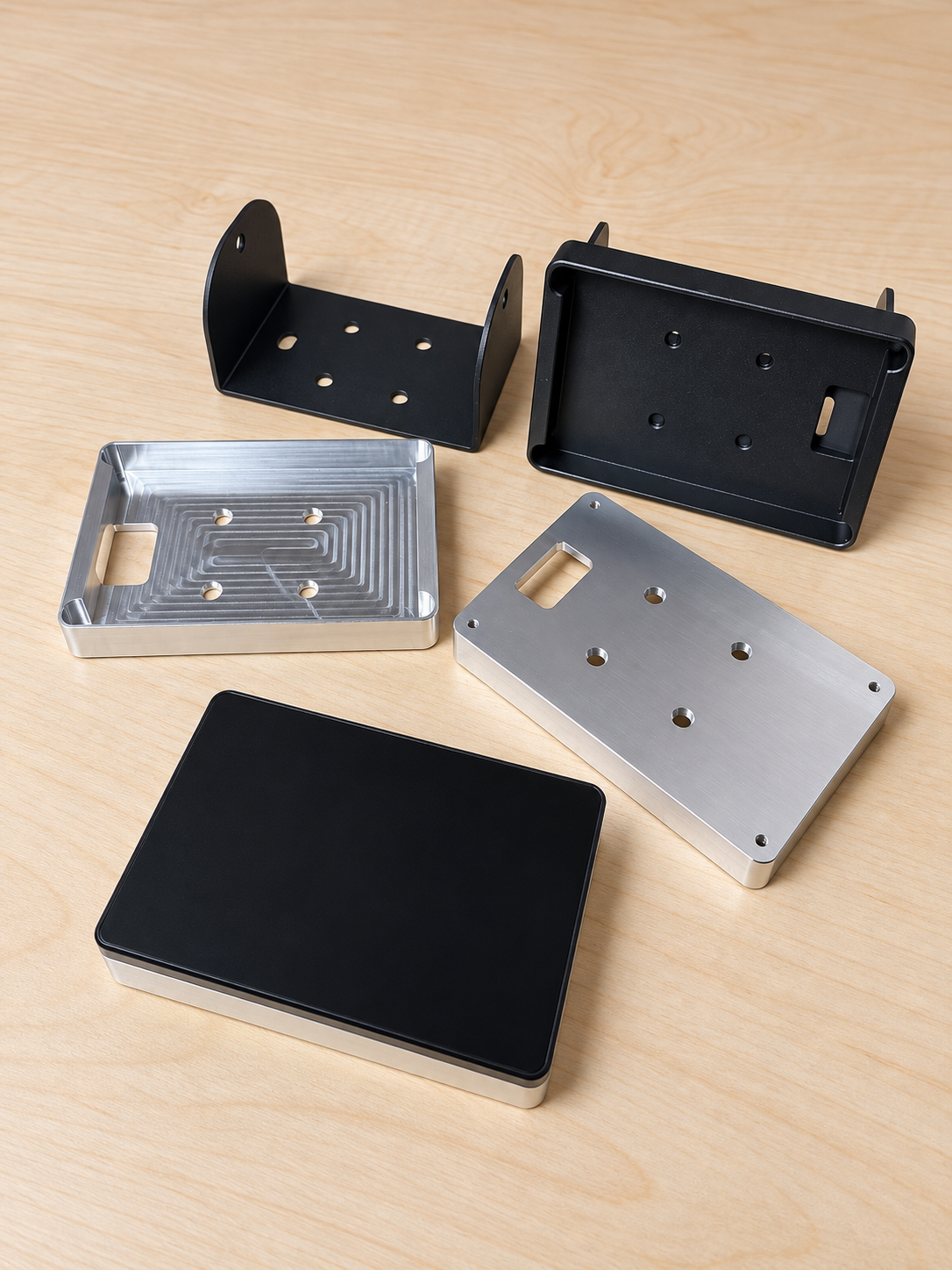

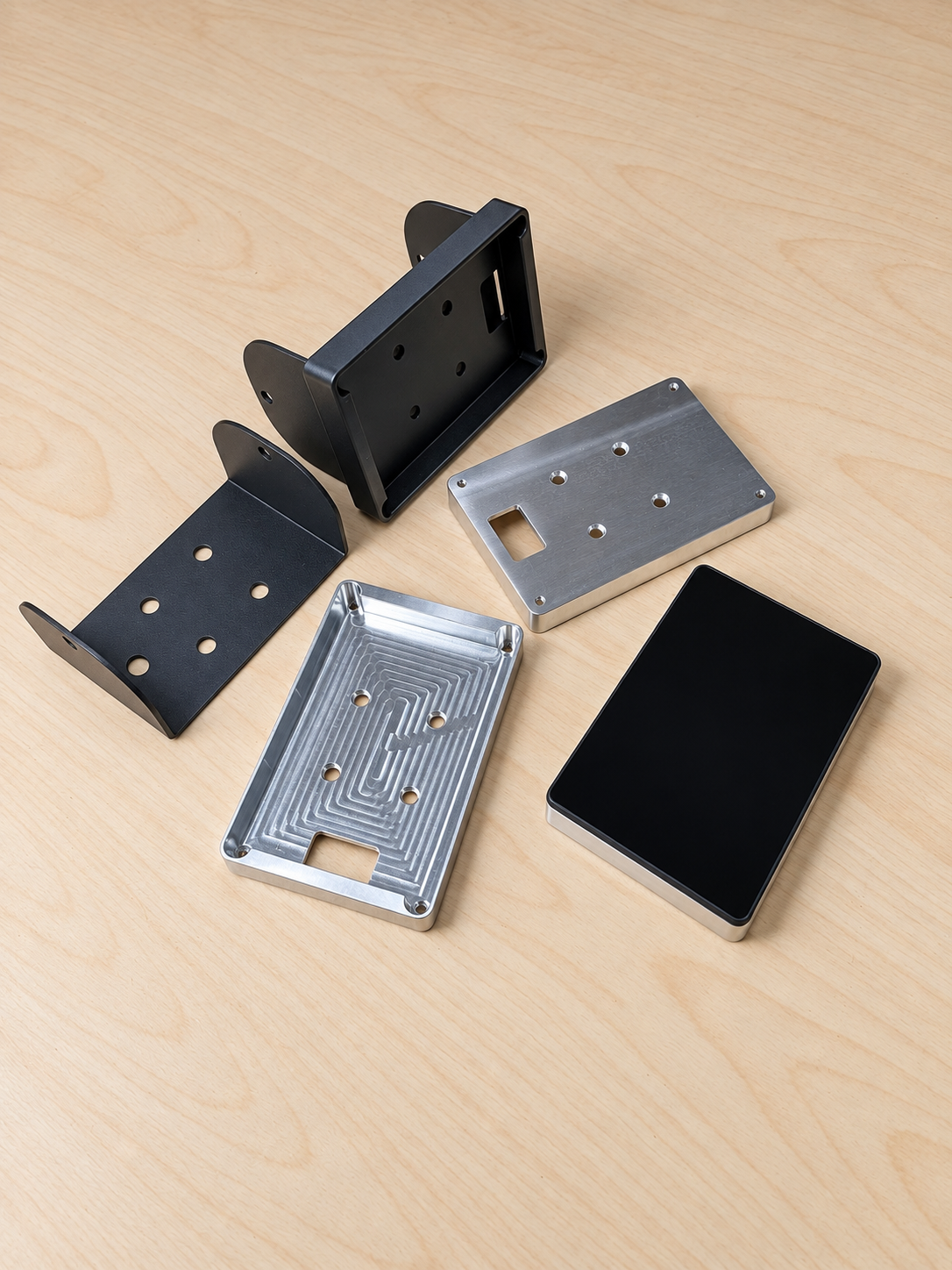

Currently comes with standard crazy cart mount and wiring, I will have other mounts and wires available soon!

Multi-Protocol Support
• VESC (all versions) -- UART or BLE
• VESC Express -- CAN forwarding over BLE
• Fardriver -- BLE
• ANT BMS -- BLE with automatic V1/V2 detection

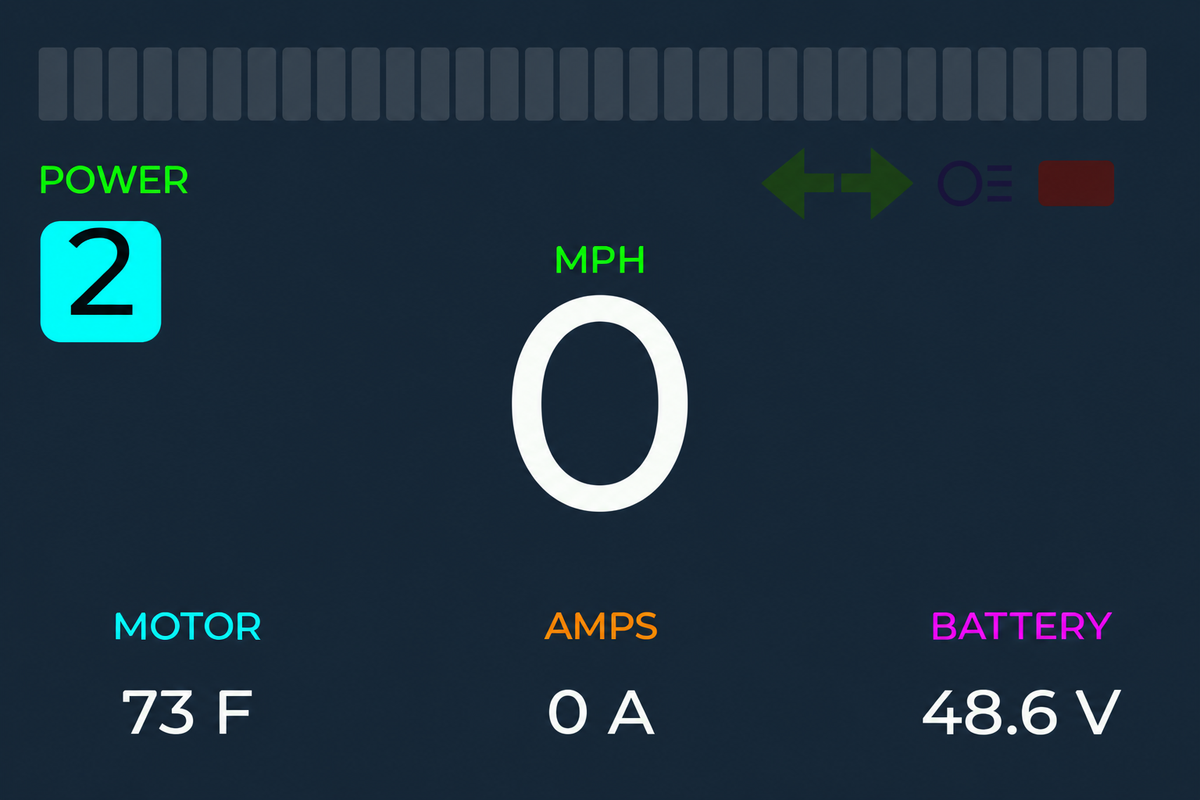

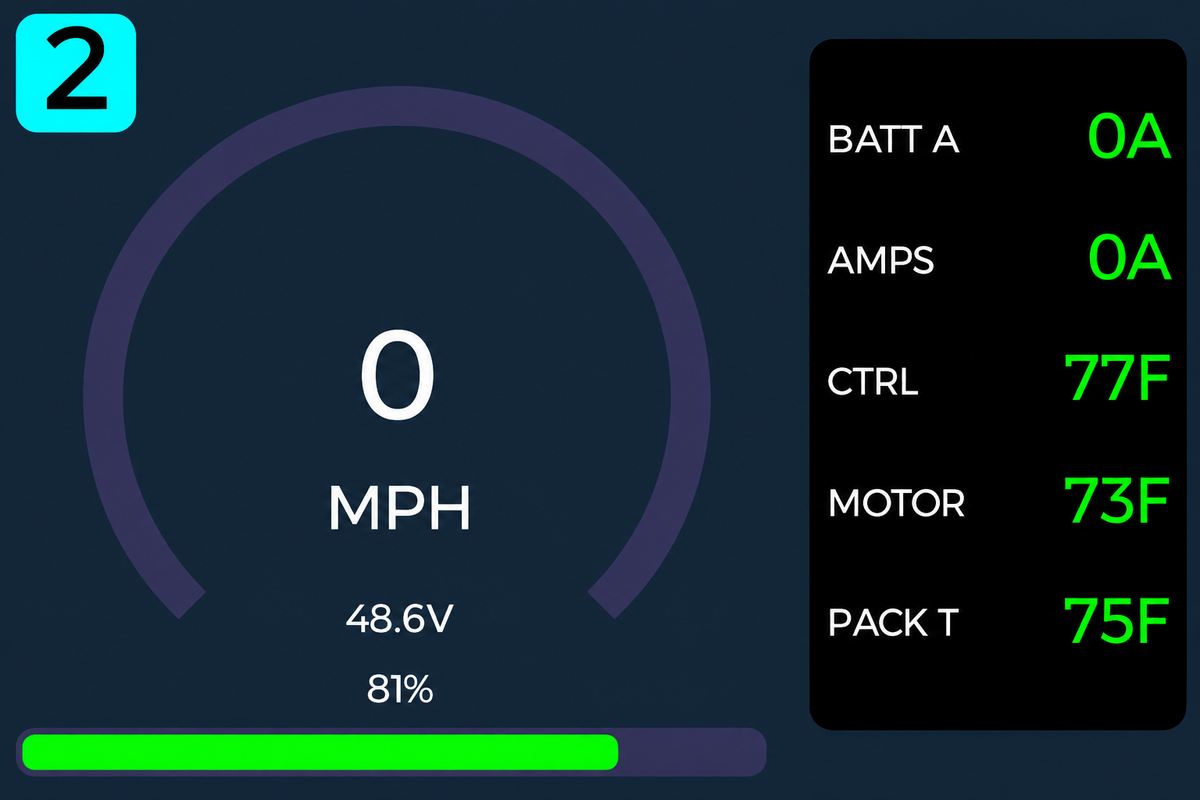

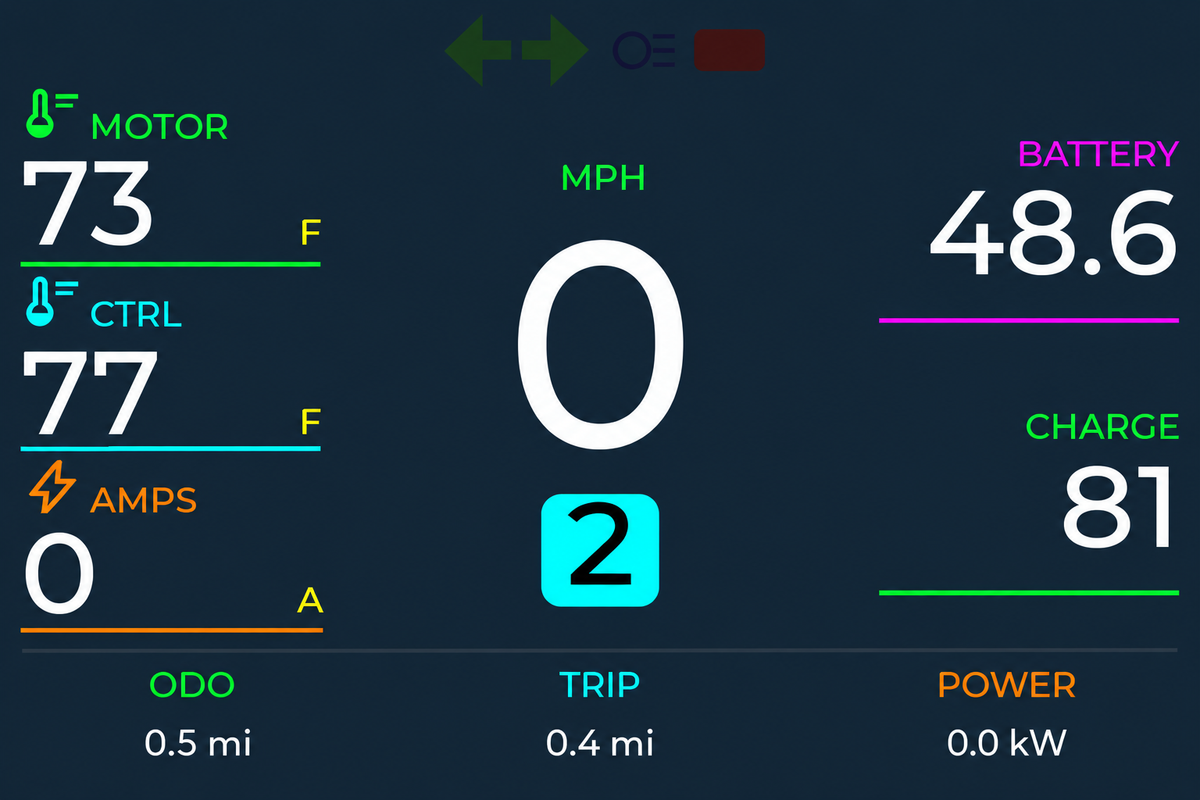

Live Data Display
• Speed (MPH)
• Battery voltage
• Current (amps)
• Motor and controller temperatures
• Battery SOC and cell-level data (ANT BMS)

Display & Info Pages
• View controller settings such as current limits (read-only)
• Trip page showing top speed, watt-hours, and ride statistics

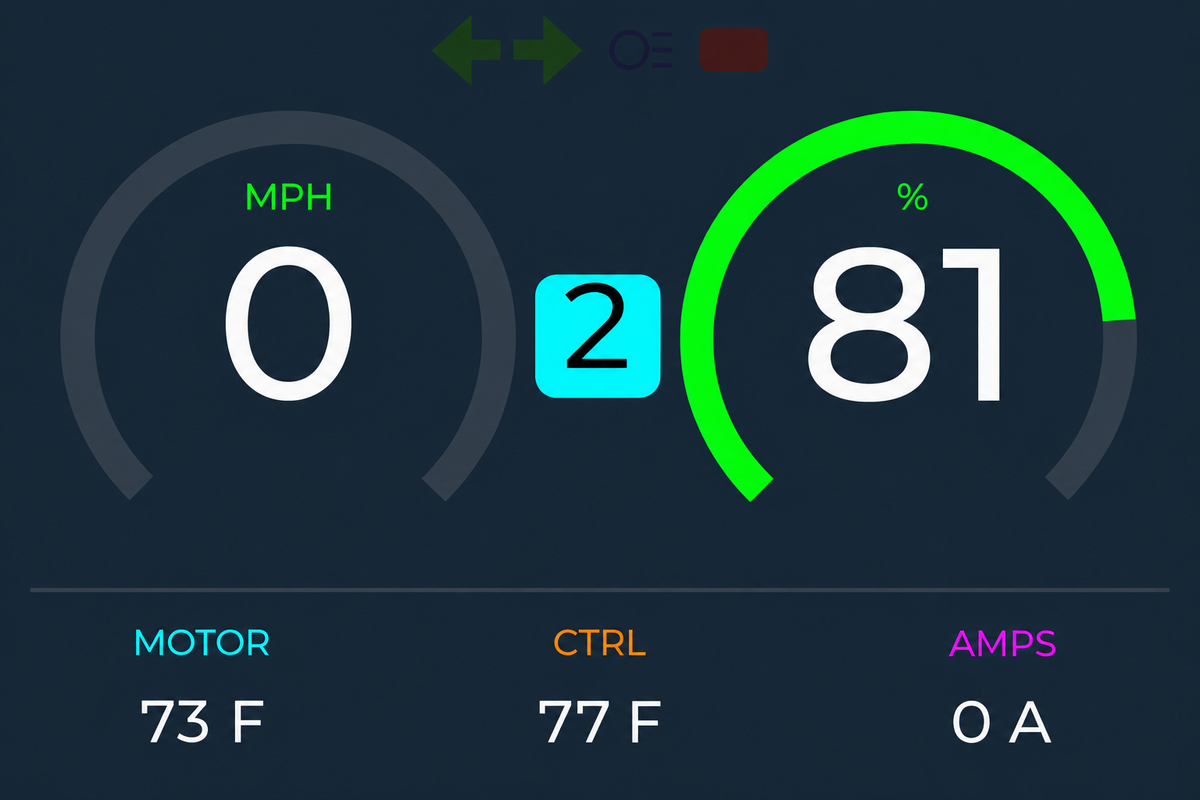

• Customizable color themes to match your setup

Power Modes (ECO / MILD / WILD)
Switch between three ride profiles directly from the touchscreen. Note: Power modes require a UART connection to your VESC. This feature is not available over BLE.

BLE Passthrough
When connected to your VESC's UART port, the display acts as a BLE bridge. Connect your phone app (VESC Tool, etc.) through the display without disconnecting anything.

Smart Connectivity & Added Security
• Automatically connects to the last paired controller on power-up
• While the screen is connected, other devices cannot connect to your controller, adding an extra layer of protection against unauthorized access
• To connect a different controller, simply forget the current one from the screen to return to the device scan menu

Specs
• 3.5" IPS capacitive touchscreen (480x320)
• Powered from your controller's UART port or external 5V

VESC® is a registered trademark of Benjamin Vedder. This product is a third-party display for use with VESC® software and is not designed, manufactured, endorsed, or sponsored by Benjamin Vedder or the official VESC® project.
